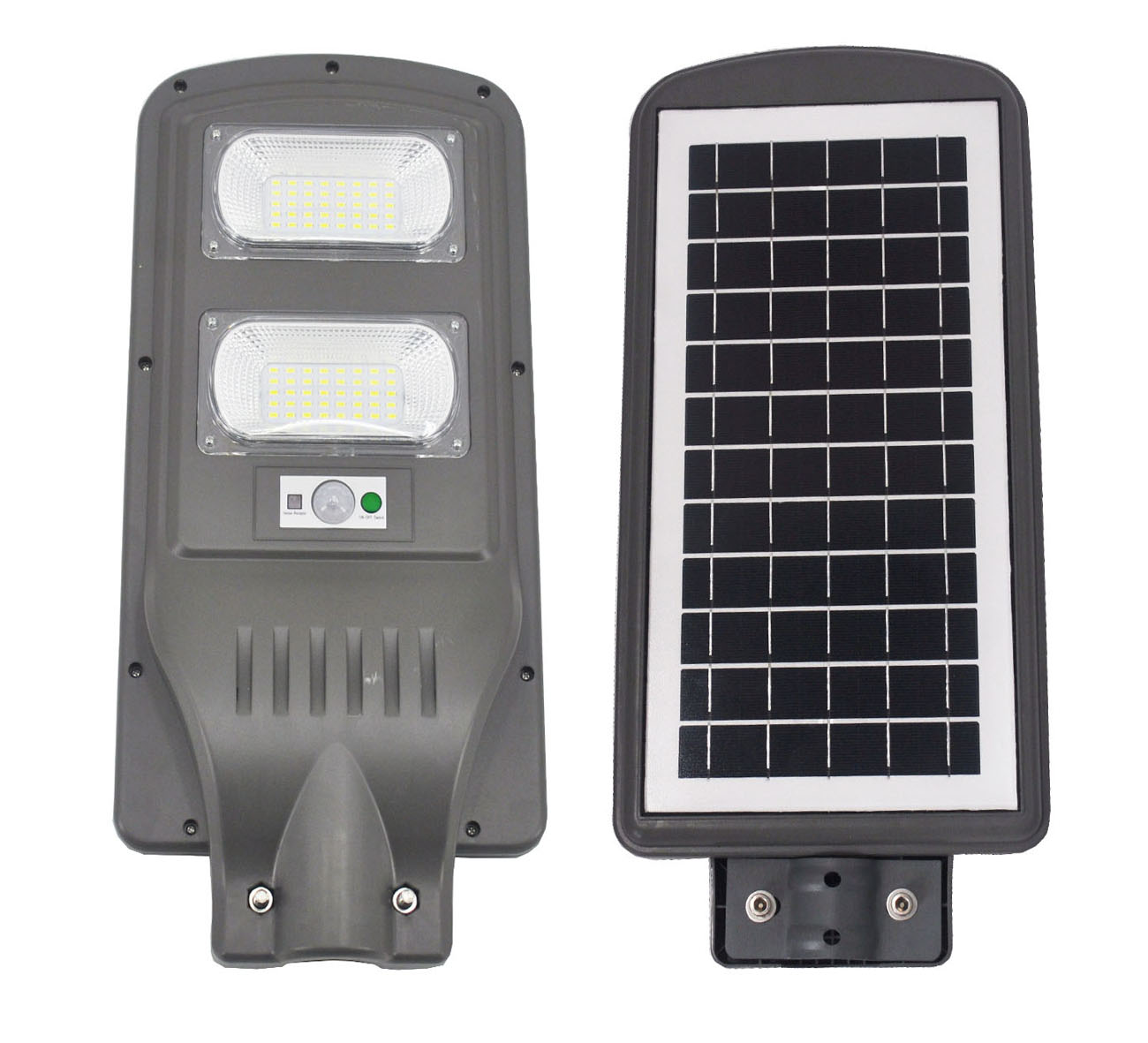

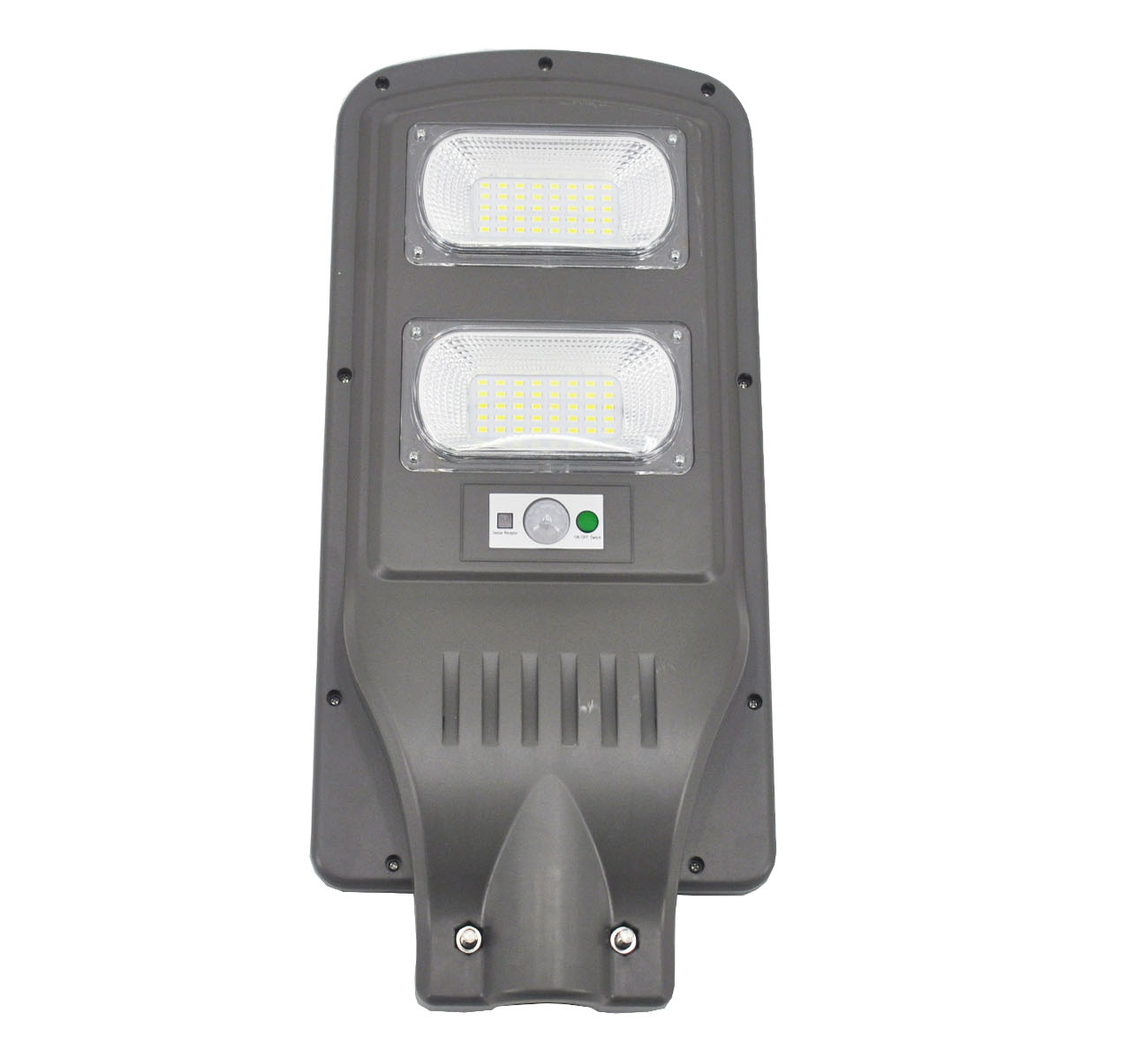

40W Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor for countryside
1)Power: 40W ALL IN ONE Solar LED street Light
2)LED QTY: 80pcs 3V1W2835
3)Solar panel: 9W/6V
4)Panel size: 383*193MM Battery: LiFePO4 3.2V/1000mA
5)Charging time: 4-6H Work time: 10-12H
6)Material: ABS
7)Waterproof:IP65
8)Rainy days : 2 days
9)Warranty: 2 years
10)Packing:5pcs/CTN；
11)Weight:G.W:11KGS;
12)Carton size:52.5*36.5*25.5CM
Light control+PIR Motion sensor Solar LED street Light
Exploded view
Solar LED street Light with time control light control and PIR sensor install way:
1)Wall mounting
2)Pole mounting
Solar LED street Light Pole size:Φ45*500mm
PIR sensor working mode:
1)100% brightness when people walk into the area
2)100% brightness for 30 seconds after people walk out of the area
3)100% brightness dim to 30% brightnes after 30 seconds
4)30% brightness when there is nobody in the area at night
We also have Solar LED street Light with time control light control and PIR sensor 20W and 60W:

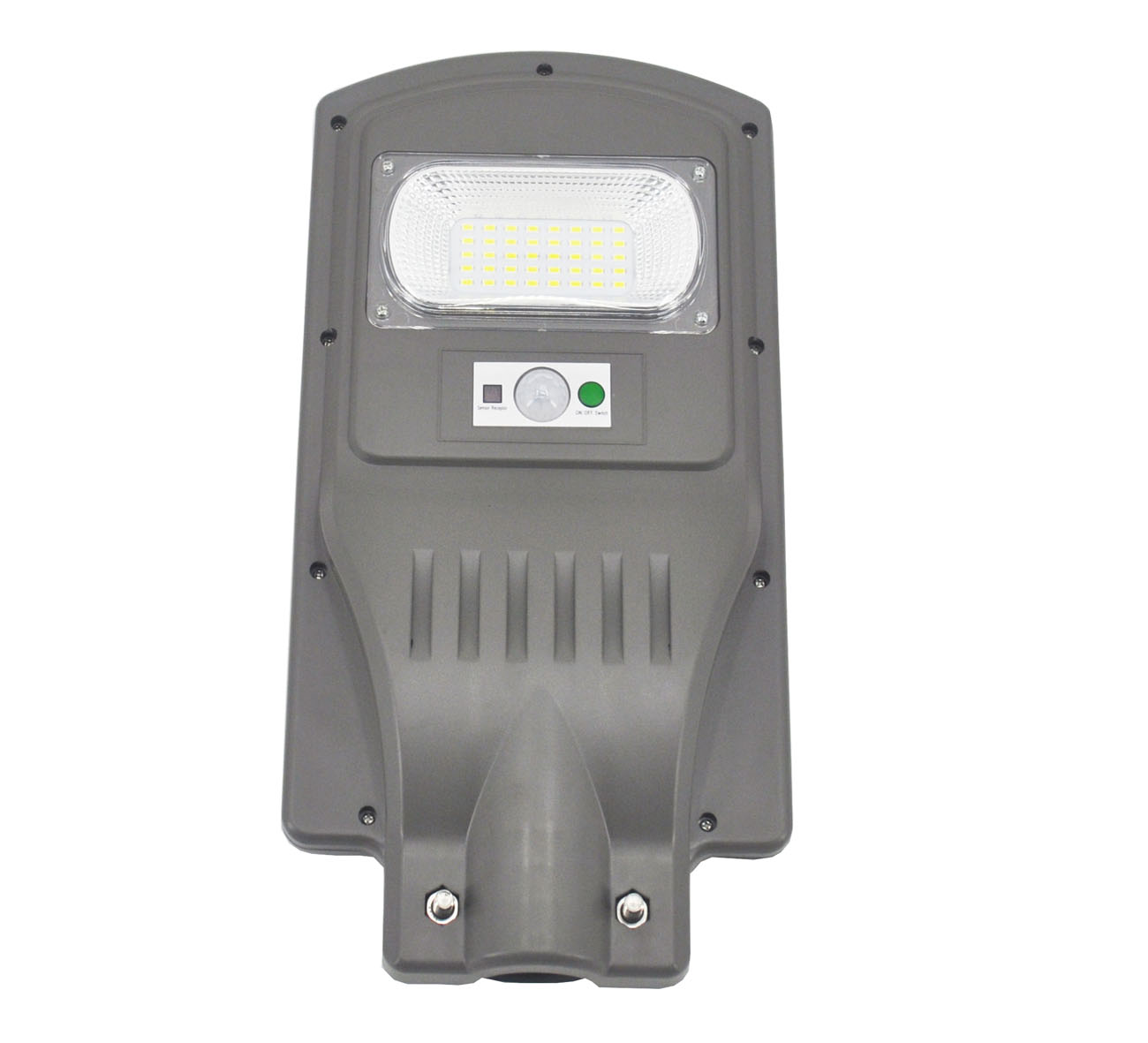

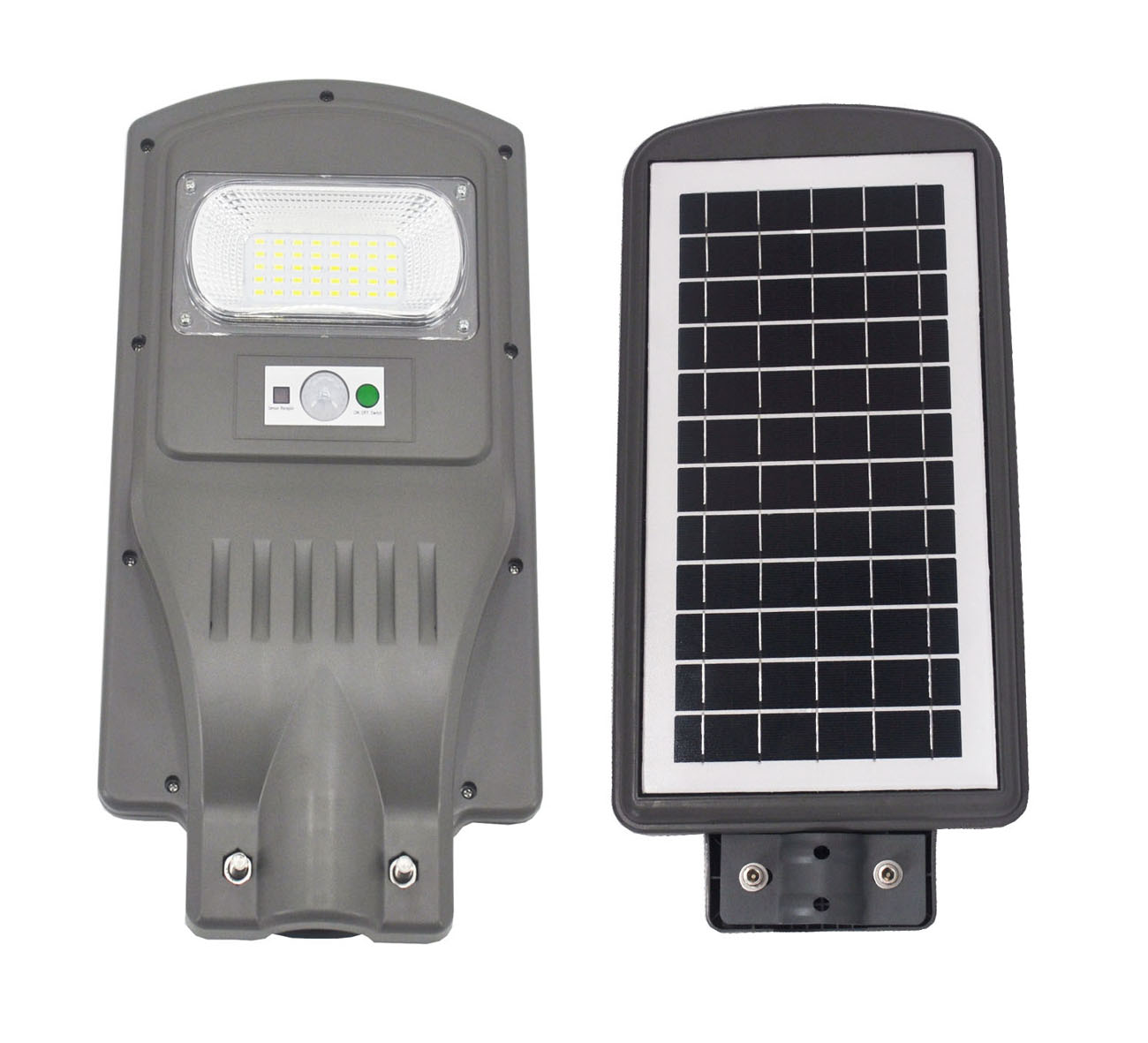

Solar LED street Light 20W:

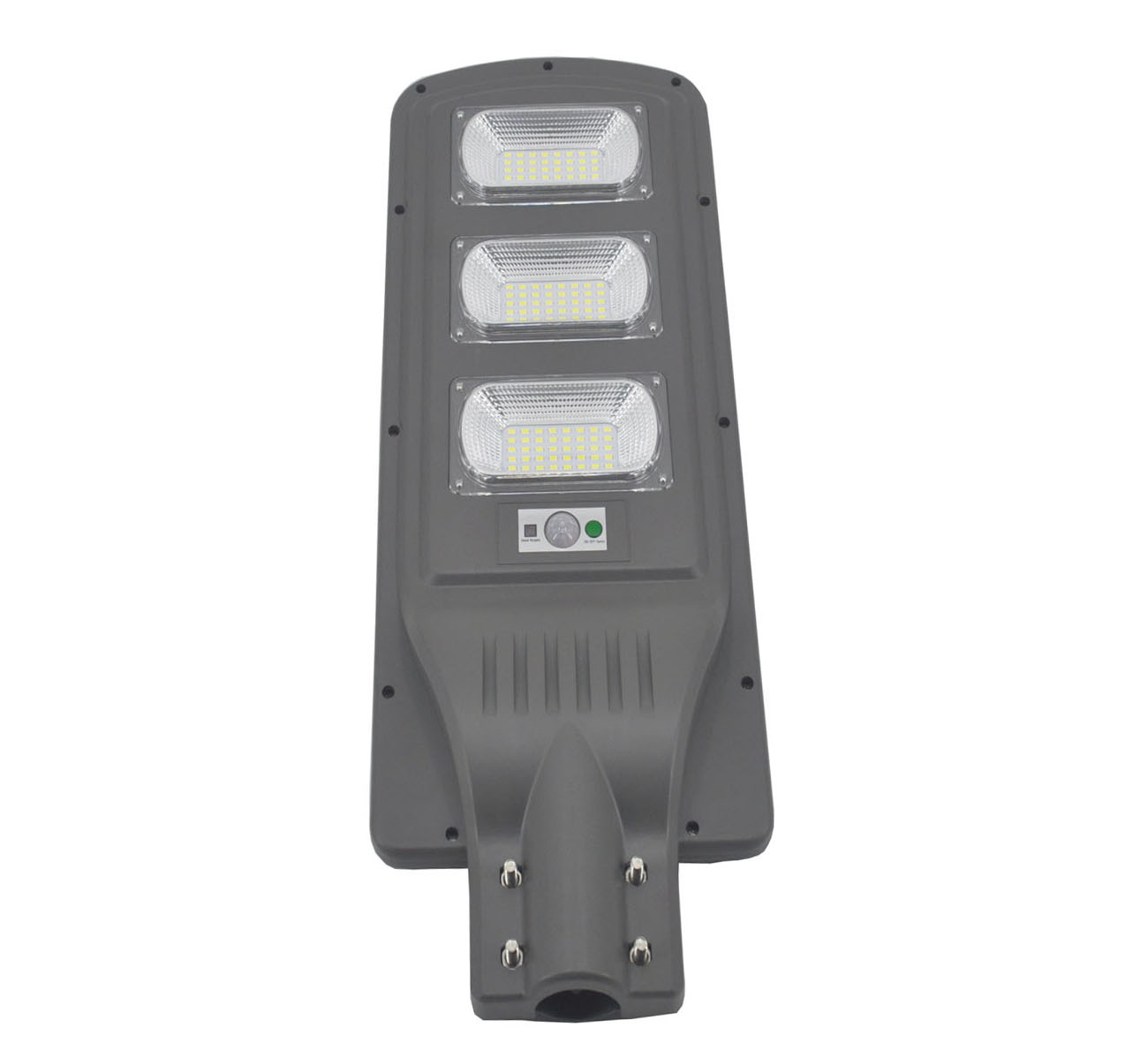

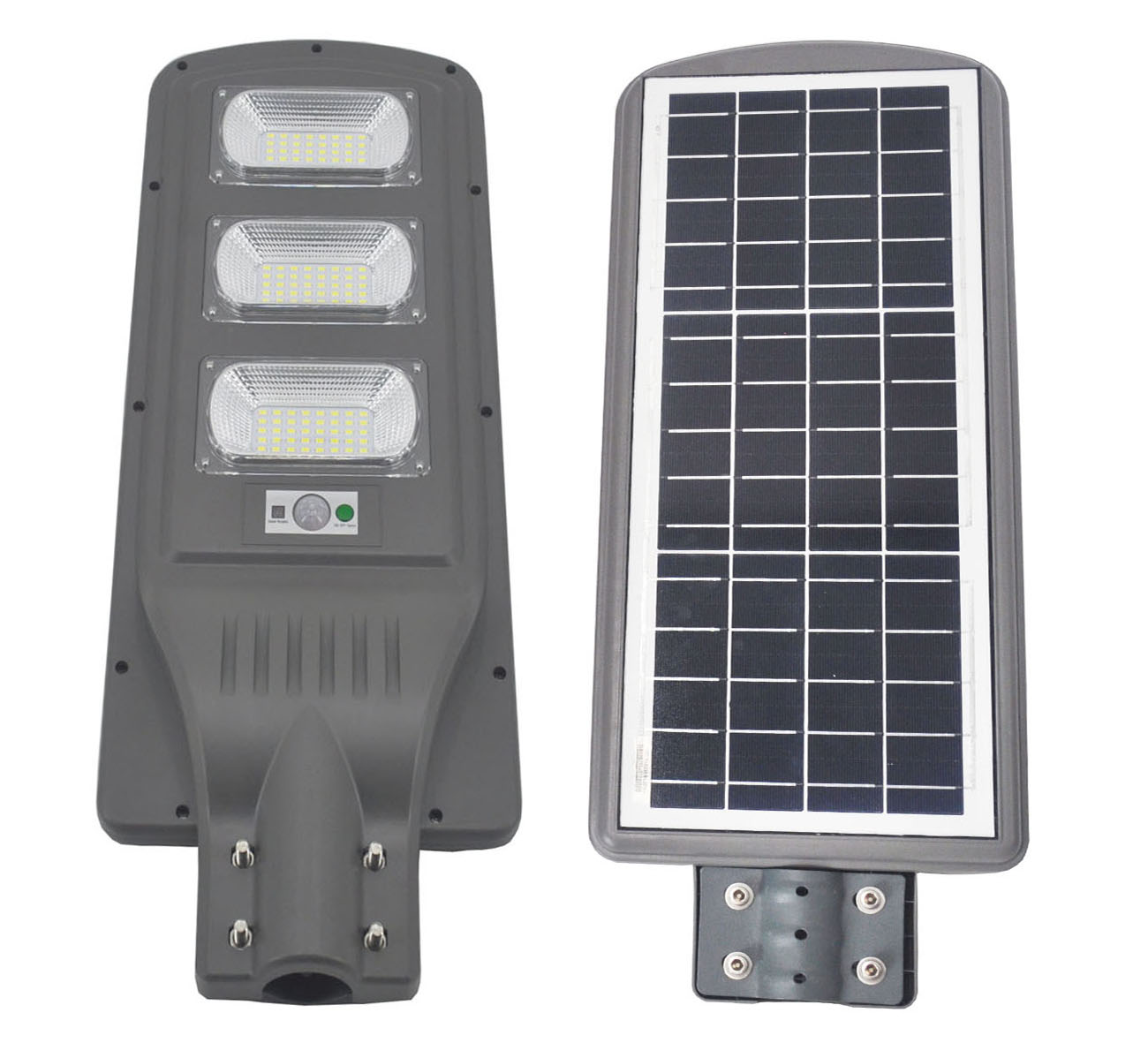

Solar LED street Light 60W:
| Model No. | Main Parameter | Controller | Packing |
| WT-SSL-01-20W-C | Power: 20W
LED QTY: 40pcs 3V1W2835
Solar panel: 7W/6V
Panel size: 171*291MM Battery: LiFePO4 3.2V/8000mA
Charging time: 4-6H Work time: 10-12H
Material: ABS
IP65
Warranty: 2 years | Light control+
PIR Motion sensor | 10pcs/CTN； G.W:15KGS; Carton size:42*31*44CM |
| WT-SSL-01-40W-C | Power: 40W
LED QTY: 80pcs 3V1W2835
Solar panel: 9W/6V
Panel size: 383*193MM Battery: LiFePO4 3.2V/10000mA
Charging time: 4-6H Work time: 10-12H
Material: ABS
IP65
Warranty: 2 years | 5pcs/CTN； G.W:11KGS; Carton size:52.5*36.5*25.5CM |
| WT-SSL-01-60W-C | Power:60W
LED QTY: 120pcs 3V1W2835
Solar panel: 13W/6V
Panel size: 498*208MM Battery: LiFePO4 3.2V/15000mA
Charging time: 4-6H Work time: 10-12H
Material: ABS
IP65
Warranty: 2 years | 5pcs/CTN； G.W:14.5KGS; Carton size:65*36.5*27CM |

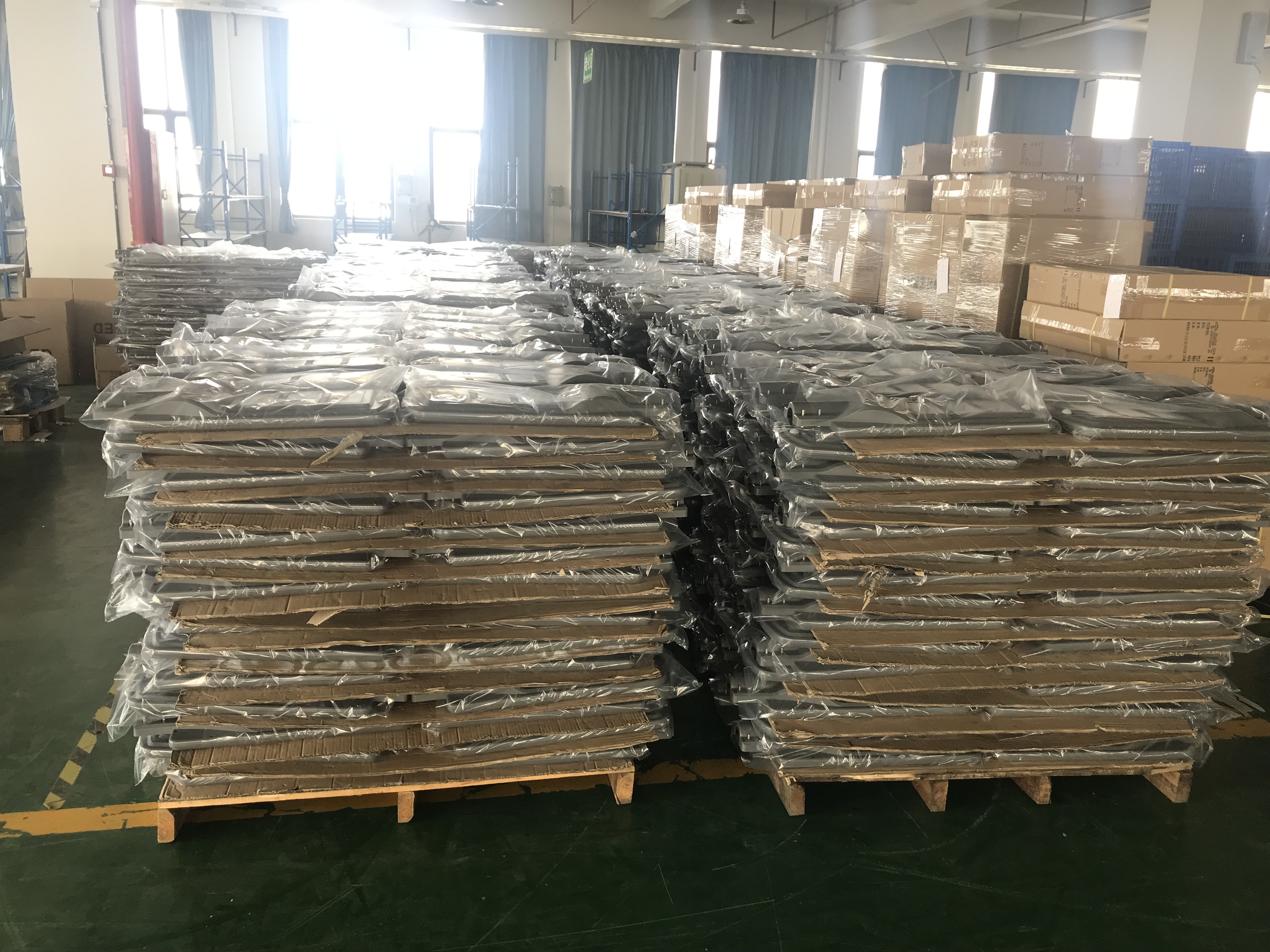

Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor production line:

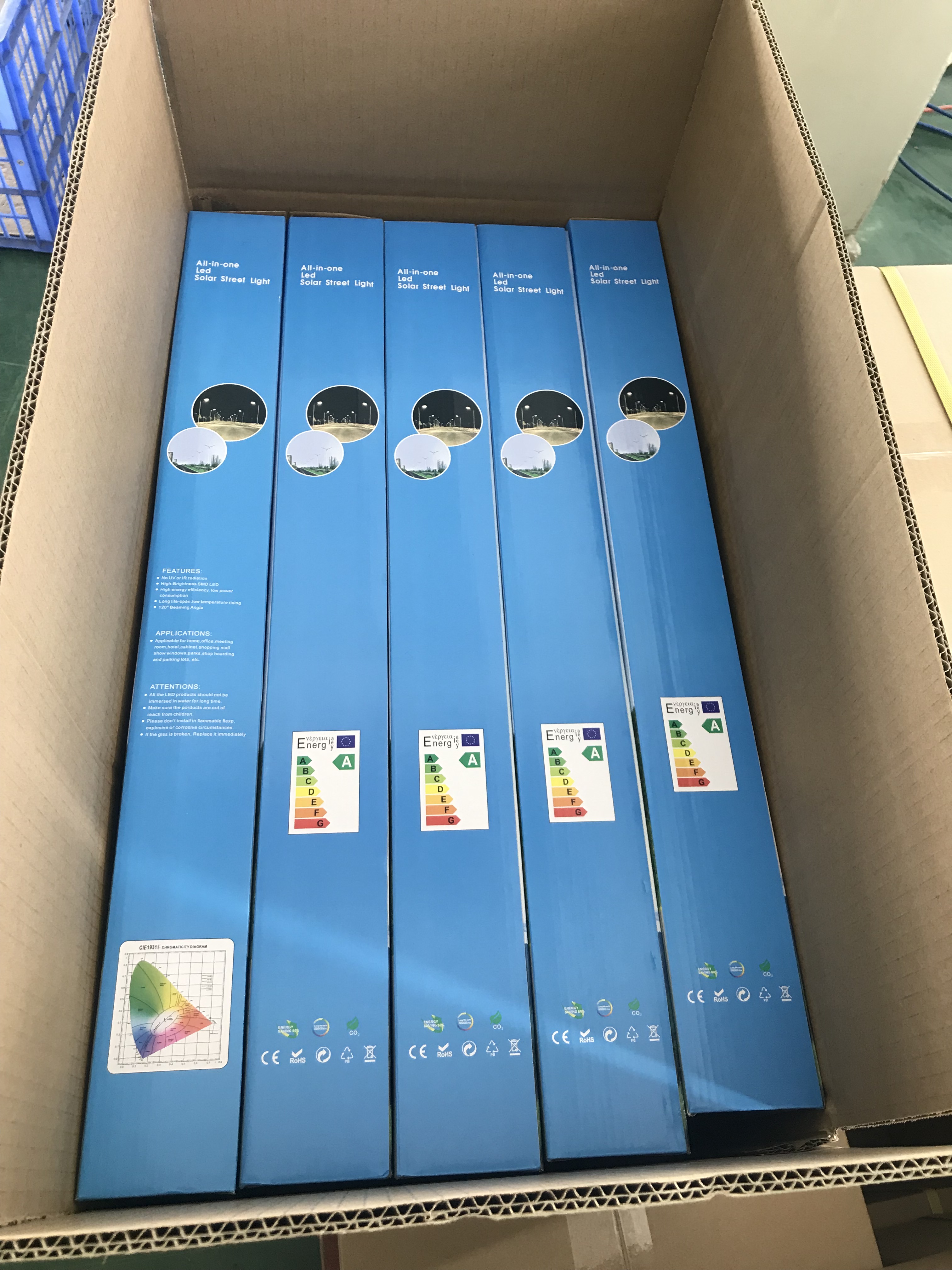

Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor packing:
1)Carton size:52.5*36.5*25.5CM
2) 5PCS/CTN
| Model NO. | Watt | Input Voltage | Lighting Effect | Batteries | Panel | Install Height |
| WT-SSL-01-20W-C | 20W | 3.2V | 120-150LM/W | 8 AH | 7W | 3-4M |
| WT-SSL-01-40W-C | 40W | 10 AH | 9W | 3-4M |
| WT-SSL-01-60W-C | 60W | 15 AH | 13W | 4-5M |
|
|
40W Solar LED street Light ABS material ALL IN ONE with time control light control and PIR sensor for countryside Images
|
